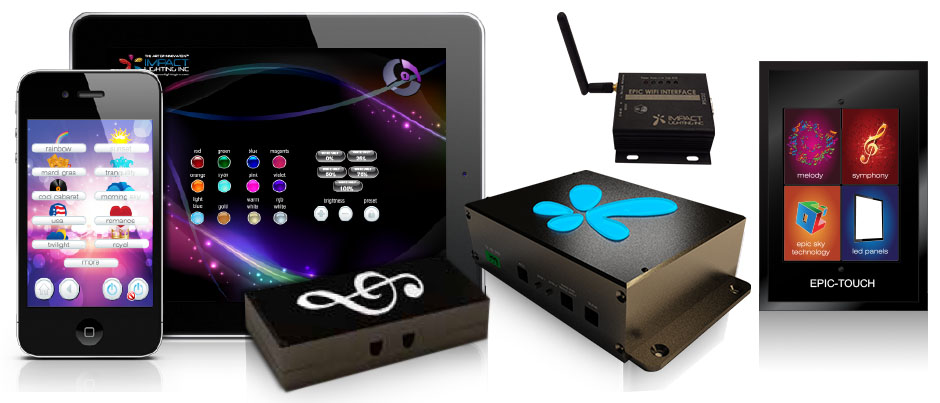

Epic Wifi Lighting Control System
The Epic™ Wifi Lighting System is a family of products designed to connect almost any LED lighting to a network in a matter of minutes.
Includes a choice of wireless WiFi or wired TCP/IP, serial RS232 controller and the EPIC’s Symphony music and sound module.
The innovative design of the Epic™ WiFi Lighting Control System allows for easy and flexible integration into any network control solution.
The Epic™ WiFi Lighting Control System is a simple wired (EP-WLS-ETH) or wireless (EP-WLS-WIFI) conduit between you and your device over a network.
This is instant network-enabling at its best, delivering the power of choice at a cost-effective price.
Software Installation Video Instruction @ http://epicskytech.com/ep-led.html
Wiring Diagram →Sell Sheet →Brochure →
Software Installation Video Instruction:
Software Installation Video Instruction:
LED Wifi Kit Installation Manual
EP-WLS-ETH & EP-WLS-WIFI)
The Epic™ WiFi Lighting Control System is a simple wired (EP-WLS-ETH) or wireless (EP-WLS-WIFI) conduit between you and your device over a network.
FUNCTION FEATURES:
• 100M high speed Ethernet card, 10/100M auto detect interface;
• Support AUTO MDI/MDIX, Can use a crossover cable or parallel cable connection;
• RS232 bound rate can set up from 300 to 256000;
• Work mode TCP Server, TCP Client, UDP, UDP Server;
• Working model related parameters can be set via a serial port or network;
• Virtual serial port supported;
• Unique heartbeat package mechanism to ensure that the connection is reliable
• Across the gateway, across switches, routers;
• Can work in LAN, also can work on the Internet (external network);
• Transmission distance: RS232 - 15 meters, RS485 - 1000 meters, cable 200 meters
(after the switches together through the Internet, no distance limit).
PRODUCT FEATURES
• 32 bits ARM CPU inside;
• LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
• serial port baud rate: from 2400 to 256 KBPS can be set up
• network protocol: ETHERNET ARP IP UDP TCP ICMP;
• Software tool: configuration software, TCP/UDP test soft, RS232 debug soft;
• Configuration method: RS232 or via Ethernet, free software available;
• Operating temperature: -25~75°C;
• Save the environment: -40~85°C, 5~95%RH.
EPIC RS232 Advanced Serial Controller
- 4 high current channels with independent control - The highest in the industry. RGB + White.
- Suitable for common anode RGB LED strips, LEDs and incandescent bulbs.
- Standalone mode with 8 pre-programmed light sequences.
- Custom user-editable sequence via RS232.
- Wide-range effect speed adjust.
- Wide-range of external input accessories such IPAD, relays, and wireless transmitter.
- Memory for last selected sequence and user-editable sequence.
- Serial TTL interface to control from your micro controller or PC - interface sold separately.
- Addressable. Multiple modules can be connected with independent control for each module.
- Small form factor.
- PWM of 480 Hz to deliver smooth dimming and a wide range of color spectrum of RGB LED light fixtures.
- Override memory feature that allows last program to continue even in an event whereby the RS232 serial connection is disrupted for any reason.
- Reverse polarity protection.
- Work independently or integrated into a whole-house control system.
EPIC RS232 Pro Serial Controller
- 4 high current channels with independent control - The highest in the industry. RGB+White.
- Suitable for common anode RGB LED strips, LEDs and incandescent bulbs.
- Standalone mode with 8 pre programmed light sequences.
- Custom user-editable sequence via RS232.
- Wide-range effect speed adjust.
- Wide-range of external input accessories such IPAD, relays, and wireless transmitter.
- Memory for last selected sequence and user-editable sequence.
- Serial TTL interface to control from your microcontroller or PC - interface sold separately.
- Addressable. Multiple modules can be connected with independent control for each module.
- Small form factor.
- PWM of 480 Hz to deliver smooth dimming and a wide range of color spectrum of RGB LED light fixtures.
- Override memory feature that allows last program to continue even in an event whereby the RS232 serial connection is disrupted for any reason.
- Reverse polarity protection.
- Work independently or integrated into a whole-house control system.
EPIC Touch RS232 Wall Mounted Controller
BENEFITS:
• Pre-programmed, does not need software setup
• One single cad5 simple installation
• Simple ambient light control
• Mounts to a single gang electrical box
• Full control for you star panels and full control of your Pulsar Melody
• Easy to use touch interface
• Automatic screen brightness control
• RS-232 input and output
• Full compatibility with all epic sky tech products
PRODUCT FEATURES:
• 12V DC input
• Optional wireless communication
• Aluminum powdered coated black enclosure
• Epic connect technology - connects power and communication in one cable to our epic rs232 controllers.
• 2.8 in full color backlit touch screen
• Optional wireless module
EPIC Symphony
BENEFITS:
• Pre-programmed, does not need software setup
• One single cad5 simple installation
• Simple ambient light control
• Mounts to a single gang electrical box
• Full control for you star panels and full control of your Pulsar Melody
• Easy to use touch interface
• Automatic screen brightness control
• RS-232 input and output
• Full compatibility with all epic sky tech products
PRODUCT FEATURES:
• 12V DC input
• Optional wireless communication
• Aluminum powdered coated black enclosure
• Epic connect technology - connects power and communication in one cable to our epic rs232 controllers.
• 2.8 in full color backlit touch screen
• Optional wireless module
EPIC Distribution
The EP-DIST-01 is designed for easy and clean installation and lightens up the load reducing low voltage wire burns and or shorts.
